Read More

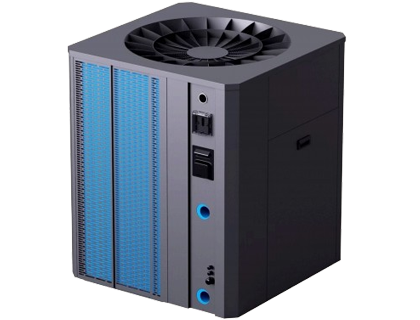

The AquaPool-Home series uses full DC inverter technology, allowing for more precise swimming pool water temperature control. Its metal casing not only looks good, but also protects the internal components, increasing the product's lifespan.
This swimming pool heat pump allows you to enjoy comfortable water temperatures all year round, while also saving on electricity costs.
Contact Us| AquaPool-Home | |||||||||||
| Model | AquaPool-Home07 | AquaPool-Home10 | AquaPool-Home13 | AquaPool-Home15 | AquaPool-Home20 | AquaPool-Home20Tri | AquaPool-Home24 | AquaPool-Home24Tri | AquaPool-Home30 | AquaPool-Nexus30Tri | |
| Performance at Air 26℃, Water 26℃ | |||||||||||
| Capacity | kW | 6.7 | 8.63 | 11.9 | 13.8 | 19.4 | 19.4 | 23.8 | 23.8 | 30.5 | 30.5 |
| COP | W/W | 6.36 | 6.1 | 5.78 | 5.47 | 5.58 | 5.58 | 5.35 | 5.35 | 5.43 | 5.43 |
| Power input | KW | 1.05 | 1.44 | 2.06 | 2.53 | 3.48 | 3.48 | 4.45 | 4.45 | 5.63 | 5.63 |
| Performance at Air 15℃, Water 26℃ | |||||||||||
| Capacity | kW | 5.1 | 6.38 | 8.66 | 10.74 | 14.7 | 14.7 | 17.6 | 17.6 | 24 | 24 |
| COP | W/W | 4.87 | 4.76 | 4.59 | 4.63 | 4.59 | 4.59 | 4.49 | 4.49 | 4.54 | 4.54 |
| Power input | kW | 1.04 | 1.34 | 1.88 | 2.32 | 3.2 | 3.2 | 3.93 | 3.93 | 5.29 | 5.29 |
| Performance at Air 35℃, Water 30℃ | |||||||||||
| Capacity | kW | 2.72 | 4.2 | 5.37 | 6.73 | 9.96 | 9.96 | 12.2 | 12.2 | 15.2 | 15.2 |
| COP | W/W | 4.66 | 3.9 | 4.1 | 4.08 | 3.41 | 3.41 | 2.95 | 2.95 | 2.78 | 2.78 |
| Power input | kW | 0.58 | 1.08 | 1.31 | 1.64 | 2.91 | 2.91 | 4.14 | 4.14 | 5.47 | 5.47 |
| Performance at Air 2℃, Water 26℃ | |||||||||||
| Capacity | kW | 3.72 | 3.76 | 5.13 | 6.13 | 9.96 | 9.96 | 12.4 | 12.4 | 17.5 | 17.5 |
| COP | W/W | 3.99 | 3.29 | 3.09 | 3.03 | 3.41 | 3.41 | 3.68 | 3.68 | 3.65 | 3.65 |
| Power input | kW | 0.93 | 1.14 | 1.65 | 2.02 | 2.91 | 2.91 | 3.38 | 3.38 | 4.79 | 4.79 |
| Performance at Air -7℃, Water 26℃ | |||||||||||
| Capacity | kW | 2.78 | 2.65 | 4.77 | 5.12 | 8.68 | 8.68 | 10.3 | 10.3 | 13.1 | 13.1 |
| COP | W/W | 3 | 3.12 | 2.69 | 3.2 | 3.16 | 3.16 | 3.18 | 3.18 | 2.99 | 2.99 |
| Power input | kW | 0.91 | 0.85 | 1.77 | 1.6 | 2.74 | 2.74 | 3.24 | 3.24 | 4.39 | 4.39 |
| General Info | |||||||||||
| Power supply | 230V/1 Ph/50Hz | 230V/1 Ph/50Hz | 230V/1 Ph/50Hz | 230V/1 Ph/50Hz | 230V/1 Ph/50Hz | 380-420V/3 Ph/50Hz | 230V/1 Ph/50Hz | 380-420V/3 Ph/50Hz | 230V/1 Ph/50Hz | 380-420V/3 Ph/50Hz | |
| Max power input | kW | 1.8 | 2 | 3 | 3.5 | 4 | 6.48 | 5.3 | 6.48 | 6.2 | 10 |
| Max current Input | A | 8 | 9 | 13 | 16 | 17.5 | 11 | 23 | 11 | 27 | 15 |
| Rated power | kW | 1.04 | 1.34 | 1.88 | 2.32 | 3.2 | 3.2 | 3.93 | 3.93 | 5.29 | 5.29 |
| Rated current | A | 4.5 | 5.8 | 8.2 | 10 | 13.9 | 5.4 | 17.1 | 6.67 | 23 | 8.98 |
| Fuse or circuit breaker(A) | A | 10 | 11 | 15 | 18 | 20 | 13 | 28 | 13 | 36 | 17 |
| Water flow | m³/h | 3 | 3 | 3.87 | 4.73 | 6.45 | 6.45 | 7.75 | 7.75 | 10.33 | 10.33 |
| Noise at 10m | dB(A) | 19-31 | 21-34 | 20-34 | 23-36 | 27-37 | 27-37 | 29-39 | 32-42 | 29-39 | 32-42 |
| Package dimensions | mm | 823×375×646 | 823×375×646 | 823×375×646 | 906×375×646 | 1104×395×746 | 1104×395×746 | 1133×545×846 | 1133×545×846 | 1133×545×846 | 1133×545×846 |
| dimensions | mm | 894×405×800 | 894×405×800 | 894×405×800 | 974×405×800 | 1174×425×881 | 1174×425×881 | 1165×575×1025 | 1165×575×1025 | 1165×575×1025 | 1165×575×1025 |
| Net Package weight | kg | 42.5/52 | 44.5/54 | 49.5/58 | 55.8/65.8 | 70/83 | 73.5/86.5 | 88.5/105.8 | 92/109.3 | 96/114 | 96/114 |
| Advised pool volume | m³ | 15-30 | 22-43 | 30-56 | 37-68 | 45-85 | 45-85 | 54-90 | 54-90 | 72-120 | 72-120 |
| Advised Pool Volume (fabricant) | m³ | 20 | 28 | 36 | 45 | 60 | 60 | 72 | 72 | 96 | 96 |
| Heating temperature range | ℃ | 15～40℃ | 15～40℃ | 15～40℃ | 15～40℃ | 15～40℃ | 15～40℃ | 15～40℃ | 15～40℃ | 15～40℃ | 15～40℃ |
| Cooling temperature range | ℃ | 8～28℃ | 8～28℃ | 8～28℃ | 8～28℃ | 8～28℃ | 8～28℃ | 8～28℃ | 8～28℃ | 8～28℃ | 8～28℃ |
| Operating range | ℃ | -7～43℃ | -7～43℃ | -7～43℃ | -7～43℃ | -7～43℃ | -7～43℃ | -7～43℃ | -7～43℃ | -7～43℃ | -7～43℃ |
| WIFI | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES | |
| The specifications are subject to change without prior notice. For actual specifications of unit, please refer to the stickers on the unit. | |||||||||||
With a COP of up to 6.36 under A26/W26 conditions.
The metal casing is corrosion-resistant and UV-resistant, allowing for long-term use even in harsh environments.
The special sound-absorbing design makes the machine run very quietly, with only 19-34 decibels at 10 metres away, like a soft conversation, without disturbing your leisure time.
The mobile app allows you to remotely control the water temperature, set timers, and adjust the operating mode, making it more convenient to use.
