EuroHomeStar
Read More

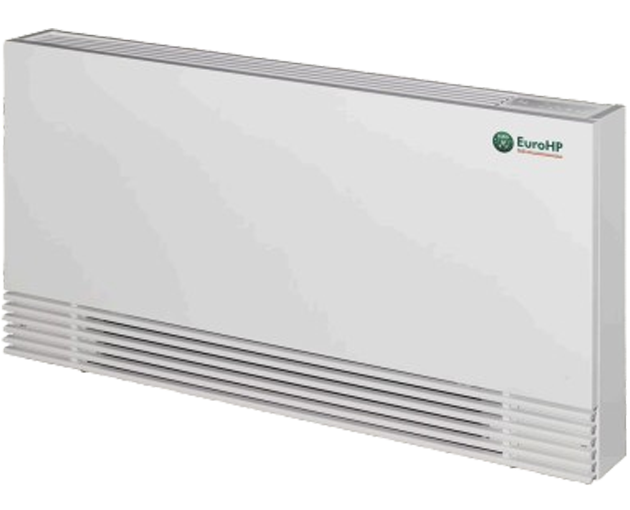

EuroHydronic fan coil unit system is carefully designed to work perfectly with the Euro-HP heat pump, offering a variety of capacity options to provide efficient, stable and energy-saving heating and cooling solutions for various commercial and residential spaces, precisely meeting the temperature control needs of different building types.
The product features a modern and minimalist exterior design that blends into the architectural space while enhancing the aesthetic appeal of the environment. It is equipped with high-precision electric control valves and a new generation of energy-efficient DC inverter motors from renowned international brands, coupled with a high-end touch-sensitive controller and smart phone app remote control function, delivering an intelligent and precise temperature control experience.
Contact UsEuroHydronic
| EuroHydronic | |||||
| Model | EuroHydronic150 | ||||
| Cooling: Water inlet/outlet 7/12℃;Room temperature DB/WB27/19℃ | |||||
| (a)Total Cooling Capacity | kW | 0.75 | 1.5 | 2.2 | 3.1 |
| Sensible Cooling Capacity | kW | 0.61 | 1.25 | 1.9 | 2.6 |
| Water Flow Rate | l/h | 142 | 302 | 453 | 573 |
| Water Pressure Drops | kPa | 7 | 9 | 22 | 28 |
| Heating: Water inlet50℃,water flow rate as in cooling operation;Room temperature 20℃ | |||||
| (b)Heating Capacity | kW | 0.99 | 2 | 2.8 | 4.2 |
| Water Flow Rate | l/h | 142 | 302 | 453 | 573 |
| Water Pressure Drops | kPa | 6.5 | 7 | 18.5 | 24.5 |
| Heating: Water inlet70℃outlet60℃:Room temperature20℃ | |||||
| (c) Heating Capacity | kW | 1.55 | 3.1 | 4.6 | 6.3 |
| Water Flow Rate | l/h | 162 | 343 | 471 | 600 |
| Water Pressure Drops | kPa | 7 | 7.5 | 19 | 25 |
| Sound pressure level tested as per EN12102 | |||||
| (e)Maximum Noise | dB(A) | 39 | 40 | 42 | 42.1 |
| (e)Minimum Noise | dB(A) | 19.8 | 18.3 | 19.1 | 21 |
| Basic technical data | |||||
| (d)Maximum Air Flow | m3/h | 160 | 320 | 460 | 580 |
| Power Supply | V/ph/Hz | 230/1/50 | 230/1/50 | 230/1/50 | 230/1/50 |
| Maximum Operating Pressure | bar | 10 | 10 | 10 | 10 |
| Water Pipe Connector | inches | G1/2 | G1/2 | G1/2 | G1/2 |
| Maximum Running Current | A | 0.12 | 0.16 | 0.21 | 0.24 |
| Maximum Power Input | W | 14 | 23 | 27 | 33 |
| Length | mm | 720 | 920 | 1120 | 1320 |
| Height(without feet) | mm | 620 | 630 | 630 | 630 |
| Depth | mm | 165 | 165 | 165 | 165 |
| Net Weight | kg | 14 | 16.5 | 19.5 | 22.5 |
| Gross Weight | kg | 16 | 19 | 22 | 25.5 |
| The specifications are subject to change without prior notice.For actual specifications ofunit,please refer to the stickers on the unit. | |||||
Multiple capacity options to meet various space cooling and heating requirements.
High-end touch controller and mobile app remote adjustment function.
Electric valves and high-efficiency DC inverter motors from renowned international brands.
User-friendly design with easily removable filters, simplifying daily cleaning and maintenance.
