Read More

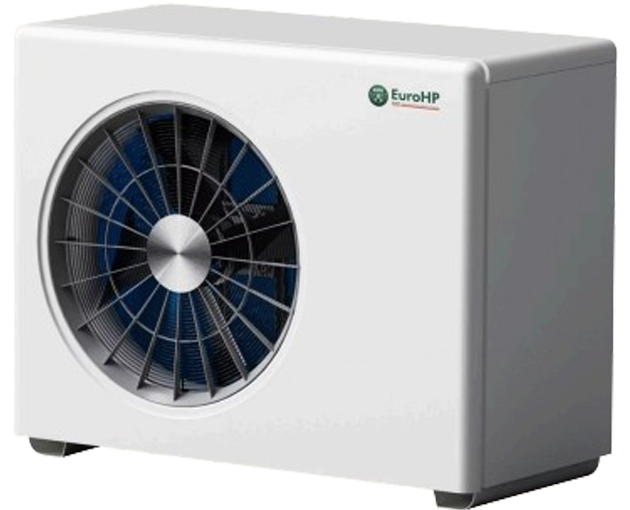

EuroSmartHeat is an air source heat pump system that uses the environmentally-friendly refrigerant R32 and has an A+++ energy efficiency rating. It is designed for home heating, cooling and hot water supply, combining high efficiency and environmental performance to meet diverse usage needs. This compact and easy-to-operate system is suitable for installation and use in different spaces and climates, helping to create a comfortable and green living environment.
Contact UsEuroSmartHeatEuroSmartHeat
| EuroSmartHeat | ||||||||
| Model | EuroSmartHeat 06M | EuroSmartHeat 09M | EuroSmartHeat 12M | EuroSmartHeat 15M | EuroSmartHeat 19M | |||
| Seasonal Energy-(According to EN14825) | ||||||||
| ErP | Energy class - Heating (35°C/55°C) | - | A+++/A++ | A+++/A++ | A+++/A++ | A+++/A++ | A+++/A++ | |
| SCOP(35°C/55°C) | W/W | 4.58/3.40 | 4.61/3.32 | 4.60/3.36 | 4.70/3.24 | 4.70/3.28 | ||
| Rated Heat Output(Prated) (35°C/55°C) | kW | 4.13/4.56 | 6.39/5.97 | 8.79/7.07 | 11.60/11.04 | 16.19/12.29 | ||
| Seasonal Space Heating Efficiency (ηs) (35°C/55°C) | % | 180.1/133.2 | 181.3/129.6 | 181.2/131.5 | 185.1/126.6 | 185/128.1 | ||
| Annual Energy Consumption(35°C/55°C) | kWh | 1865/2770 | 2864/3720 | 3944/4345 | 5096/7039 | 7117/7746 | ||
| Sound power level (indoor/outdoor) | dB(A) | 45/54 | 46/54 | 46/54 | 40/57 | 44/57 | ||
| Nominal Capacity and Nominal Input | ||||||||
| Nominal heating | Heating Capacity Min./Max | A7/W35 | kW | 2.86/7.45 | 3.52/9.22 | 4.49/11.7 | 6.02/15.5 | 7.68/18.5 |
| Heating Power Input Min./Max. | kW | 0.71/1.74 | 0.82/2.14 | 0.99/2.77 | 1.42/3.38 | 1.57/4.23 | ||
| C.O.P | W/W | 4.06/4.43 | 4.31/4.59 | 4.22/4.64 | 4.23/4.96 | 4.38/4.89 | ||
| Heating Capacity Min./Max | A7/W45 | kW | 2.64/6.80 | 3.16/8.68 | 3.85/11.3 | 5.32/14.5 | 6.97/18.2 | |
| Heating Power Input Min./Max. | kW | 0.86/2.06 | 1.01/2.56 | 1.24/3.35 | 1.58/4.09 | 1.94/5.08 | ||
| C.O.P | W/W | 3.07/3.37 | 3.12/3.49 | 3.12/3.47 | 3.37/3.70 | 3.58/3.72 | ||
| Nominal cooling | Cooling Capacity Min./Max | A35/W18 | kW | 3.11/7.41 | 4.30/9.49 | 7.0/ 9.8 | 7.23/18.6 | 16/19.3 |
| Cooling Power Input Min./Max. | kW | 0.46/1.89 | 0.54/2.29 | 1.73/ 2.51 | 1.42/5.0 | 4.70/6.30 | ||
| E.E.R | W/W | 3.92/4.7 | 4.15/4.7 | 4.05 / 3.9 | 3.71/5.09 | 3.05/3.41 | ||
| Cooling Capacity Min./Max | A35/W7 | kW | 1.96/4.26 | 2.21/6.40 | 3.03/8.49 | 4.46/13.1 | 5.84/15.8 | |
| Cooling Power Input Min./Max. | kW | 0.54/1.77 | 0.60/2.13 | 0.79/3.08 | 2.68/4.32 | 1.33/5.47 | ||
| E.E.R | W/W | 2.40/3.64 | 2.94/3.68 | 2.57/3.86 | 1.67/3.22 | 2.89/4.40 | ||
| General Info | ||||||||
| Electrical data | Power supply | V/Hz/Ph | 220-240/50/1 | 220-240/50/1 | 220-240/50/1 | 380-420/50/3 | 380-420/50/3 | |
| Operation limits | Ambient Temperature Range | ℃ | -25~43 | -25~43 | -25~43 | -25~43 | -25~43 | |
| Water temperature range(heating) | ℃ | 58/25 | 58/25 | 58/25 | 58/25 | 58/25 | ||
| Water temperature range(cooling) | ℃ | 20 / 7 | 20 / 7 | 20 / 7 | 20 / 7 | 20 / 7 | ||
| Refrigerant side | Refrigerant | Type / Amount | - / kg | R32/ 0.9kg | R32 / 1.4kg | R32 /1.8kg | R32 / 2.55kg | R32 / 2.6kg |
| Compressor | Type - Quantity/System | Rotary | Rotary | Rotary | Rotary | Rotary | ||
| Fan | Quantity | 1 | 1 | 1 | 1 | 1 | ||
| Water Side | Type | Plate Heat Exchanger | ||||||
| Water Pressure Drop | kPa | 23 | 23 | 23 | 23 | 23 | ||
| Piping Connection | Inch | G1" | G1" | G1" | G1-1/4" | G1-1/4" | ||
| Allowable Water Flow-Min./Rated./Max. | L/S | 0.20/0.29/0.37 | 0.30/0.43/0.56 | 0.40/0.57/0.75 | 0.5/0.72/0.93 | 0.64/0.91/1.18 | ||
| Dimension | Net Dimension(L×D×H) | Indoor Unit | mm | 570x550x260 | 570x550x260 | 570x550x260 | 570x550x260 | 570x550x260 |
| Outdoor Unit | mm | 1010x370x700 | 1165x370x845 | 1165x370x845 | 1085x400x1450 | 1085x400x1450 | ||
| Net Weight | Indoor Unit | kg | 26 | 26 | 26 | 26 | 26 | |
| Outdoor Unit | kg | 66 | 80 | 84 | 131 | 142 | ||
| The specifications are subject to change without prior notice. For actual specifications of unit, please refer to the stickers on the unit. | ||||||||
Uses the environmentally-friendly refrigerant R32, which has a GWP value only one-third of R410A.
Energy efficiency class A+++@35°C, A++@55°C, Stable operation at -25°C, Hot water temperature up to 58°C.
Provides heating, cooling and domestic hot water.
Abundant components, suitable for various installation scenarios.
